SCIP Building Kit 10-Pack

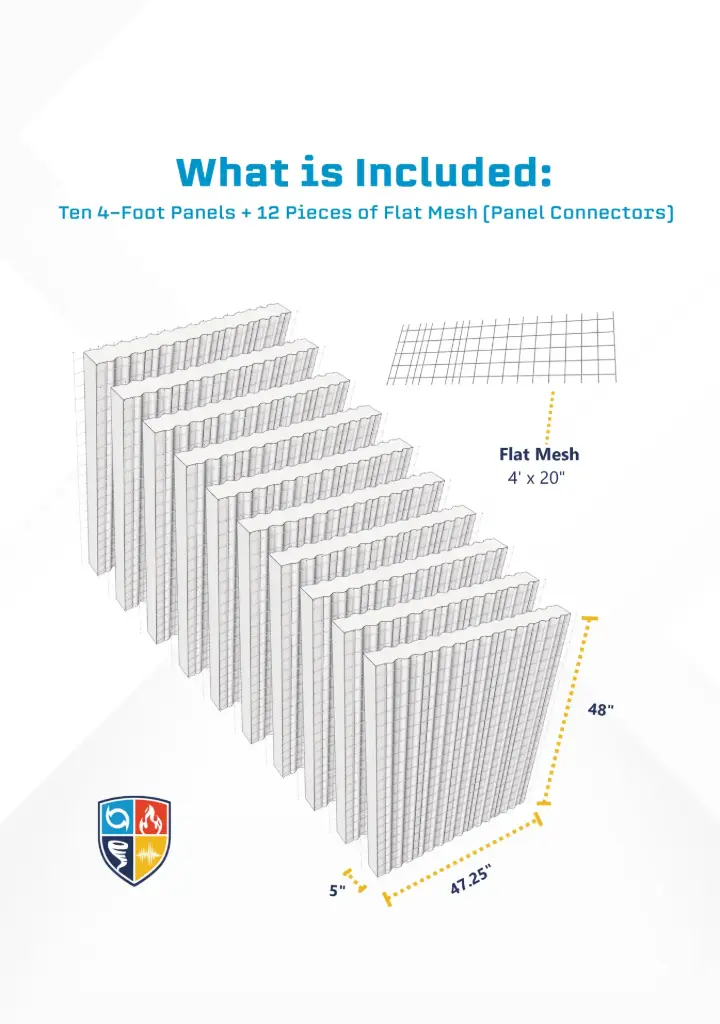

10 Structural Concrete Insulated Panels (SCIP) - 47.25" x 48" x 5"

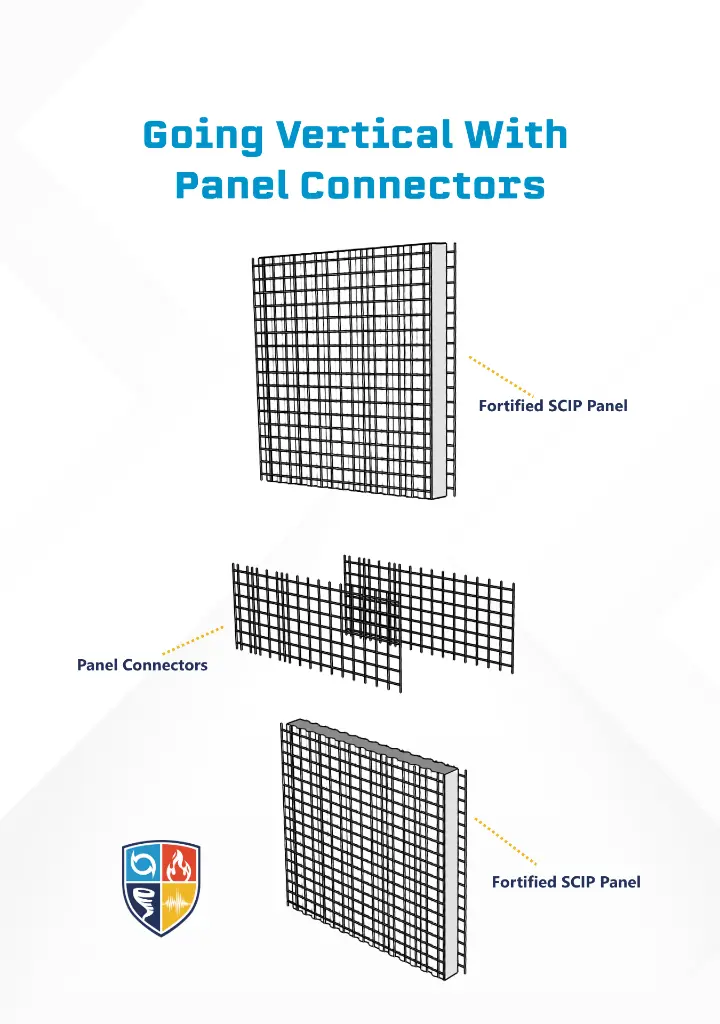

12 Panel Connectors - 48" x 20"
Total Panel Area: 158 sq ft
Concrete Coverage Area: 315 sq ft (both sides combined)

GO TO RESOURCES


Looking to try SCIP panels for a project, demo, or training? This starter kit makes it simple.

  • 10 Ready-to-Use Panels – Pre-assembled with welded-wire reinforcement and EPS insulation.
  • Easy to Handle – Perfect for small builds, partitions, or demo installations.
  • Proven Strength – Strong panels, shipped fast, ready to build. Hurricane Resilient, Fire Resistant, Tornado Strong, Earthquake Secure when finished with concrete or mortar.
  • Quick Ship Guarantee – In stock and ready to ship in 2–3 business days.
  • Mesh Accessory Calculator – Quickly figure out how much material your project will need.
  • Free Resources with Purchase – Receive our full Product Catalog and Installation Guide.


Volume Discounts Apply Automatically at Checkout.


- Concrete materials and installation tools are not included. Resources and recommended suppliers are provided in the Installation Guide and via links in your order confirmation.

- Customer assumes responsibility for correct installation of panel packs.

- All sales are final. Purchase includes a 1-year warranty covering manufacturing defects.

- Please review our full Terms & Conditions before purchase.

Expanded Polystyrene (EPS) Foam

Type I modified EPS Board - ASTM C578
Density 1 pound per cubic foot
Flame-spread index <=25
Smoke-developed index <= 450

Concrete/Mortar (applied in-situ)

Compressive Strength >2,500 PSI
Thickness >1”
Aggregate size < 5/8”
Slump > 2”

Wire Connector

11 gauge galvanized wire - ASTM A1064 Yield Strength: 115 ksi

Thermal coefficient (R Value)
F.hr.ft²/Btu

@25 °F | @ 40 °F | @ 70 °F
21.75      20.85      19.25

Acoustic coefficient (Cw)

44.5 dB

Wire-mesh Reinforcement

L 3.15” x T 2.95” 11 gauge galvanized wire - ASTM A1064
Yield Strength: 115 ksi

Weight

Panel sheet: 0.77 lb/ft2
Finished wall: 25.89 lb/ft2
850.00 850.00

5.40 / sqft
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Material Calculator

Estimate panels and accessories, then add everything to your cart.

Download your Step-by-step guidance for safe, code-compliant assembly.

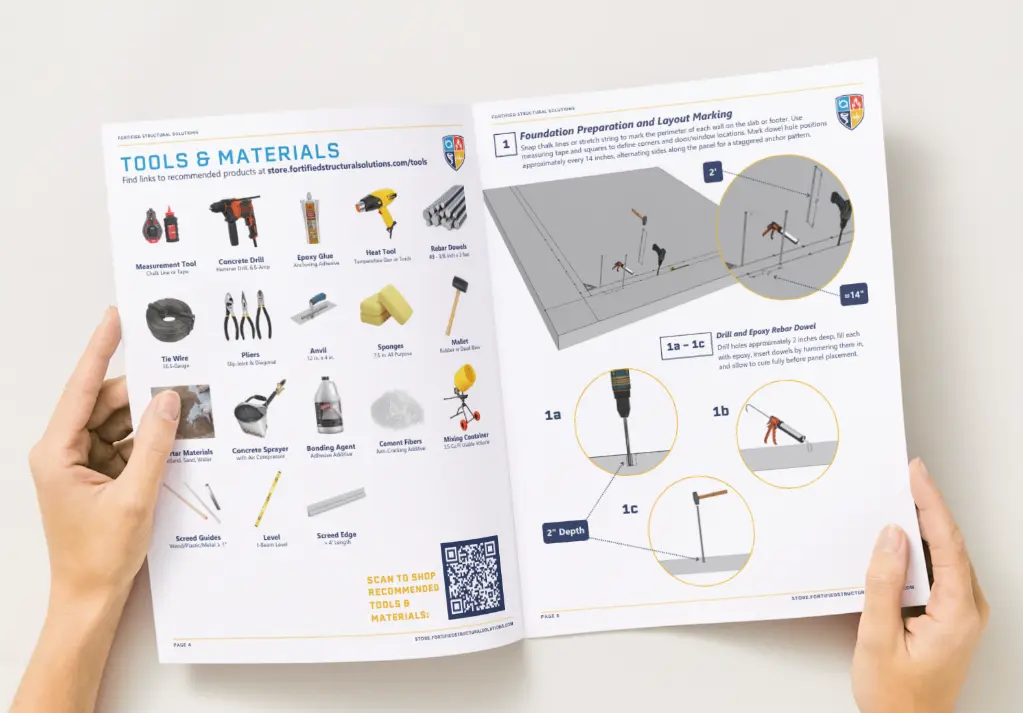

Whether you’re a licensed contractor or a hands-on DIY builder, our Installation Manual walks you through every stage—from foundation prep to final finish. Includes illustrated instructions, product specifications, concrete mix ratios, and key installation notes to ensure your project is built to last.


DOWNLOAD MANUAL

Request A Quote

For custom projects that require permitting, engineering, and/or detailed plans, your material needs may vary. For the most accurate breakdown and a personalized quote, click the button below.

CLICK HERE
